Features:

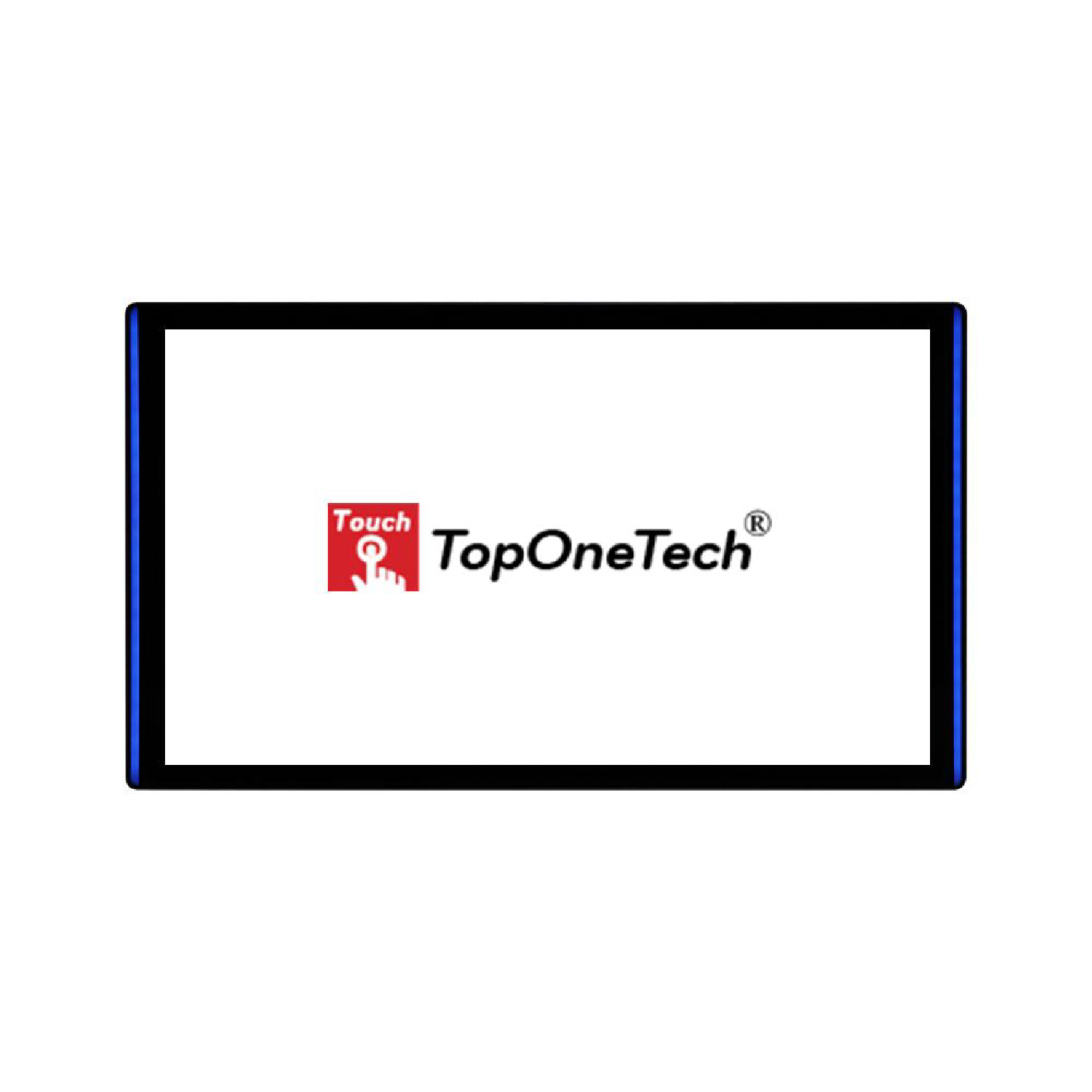

The 23 Inch LED Open Frame PCAP Multi-Touch Monitor can be a replacement touch display for Aristocrat Helix Upright And Helix Slant. The touch monitor has a long product lifecycle. It integrates Top One Tech’s PCAP technology. Users can control the host computer by solely touching the icons or text on the computer display screen with their fingers, getting rid of keyboard and mouse operation. It has the following characteristics:

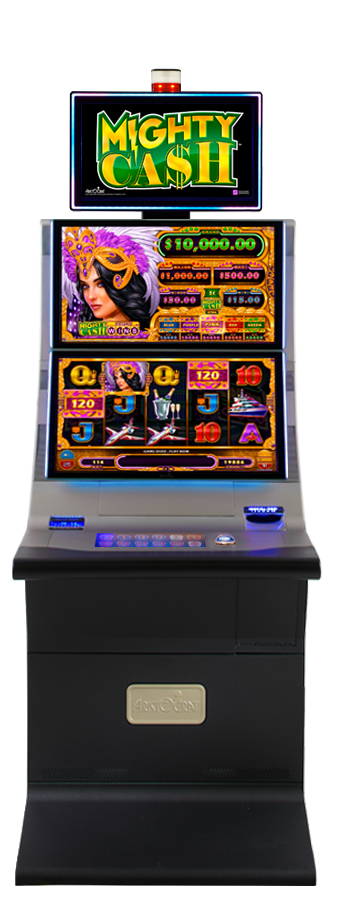

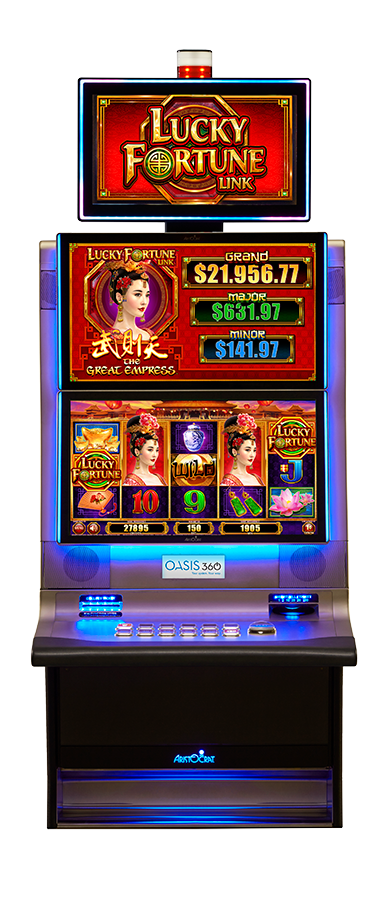

*Fully Supports Aristocrat Helix Upright And Helix Slant
*1920×1080 Resolution 16.7M Colors LCD Panel With LED Backlight
*DVI + VGA Input Video Source
*DC-12V Input Voltage
*P-CAP 10 Points Touchscreen With USB Interface
*Touch and LED Module Supports Upgrade Firmware Via USB Interface
*Certification CE,FCC,ROHS etc.
*LED Strip with 66pcs 5050RGB-LED support 16.7M Colors Display
The 23 Inch LED Open Frame PCAP Multi-Touch Monitor can be a cost-effectively replacement for Aristocrat Helix Upright And Helix Slant gaming machines.
Screen Diagonal (inch): 23
Display Type: 16:9 Ratio 23″ TFT-LCD,LED backlight
Suggested Resolution: 1920×1080@60Hz
Pure LCD Panel Brightness: 250cd/m2(Typ.)/200cd/m2(Min.)
With Touch Monitor: 212cd/m2(Typ.)/170cd/m2(Min.)
Contrast Ratio: 1000:1(Typ.)/700:1(Min.)
Active Area/View Area: 509.184*286.416(mm)
Horizontal (left/right) Viewing Angle: 89°/89°(Typ.)/85°/85°(Min.)
Vertical (up/down) Viewing Angle: 89°/89°(Typ.)/85°/85°(Min.)
Backlight Lifetime (Typ.): ≥30,000 Hours
Support Colors: 16.7M
Touch Response Time: 14ms
Video Input: VGA/DVI/DP
Frequency(H/V): 37.9～80KHz / 60～75Hz
Mount Interface: VESA 75mm and 100mm
Mount Type: Mount bracket, horizontal or vertical
Touch Screen Type: 23″ Capacitive touch screens
Touch Panel Drivers works under below systems: XP,WIN7,WIN8,WIN10,Linux,Android
Touch System Interface: USB interface
Touch Connector: USB
Surface Hardness: 6H
Buttons: AUTO, +, POWER, -, MENU
Function: Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Power Type: External brick
Display input voltage: DC 12V ± 5%
Adapter input voltage: 100-240 VAC, 50-60 Hz
Power Consumption: ≤35W
Out package Dimensions: 685*230*480mm(2pcs in one package)
Weight (including package): N.W :7.7Kg; G.W : 20.8Kg (2pcs in one package);
Power Cable: (A North American power cable or a European power cable is included according to the user’s location.)
Power Supply Brick
Touch/Video/DVI Cables: Detachable serial or USB touch cable, video cable, and DVI cable are included
We promise free after-sales maintenance services within one year due to product quality problems and can be extended to 3 years based on customer needs.
In addition to the regular module of the 23 Inch LED Open Frame PCAP Multi-Touch Monitor, we can also customize different specifications based on customers’ needs. The custom options include: structure, shape, size, function, interface, etc.
