Features:

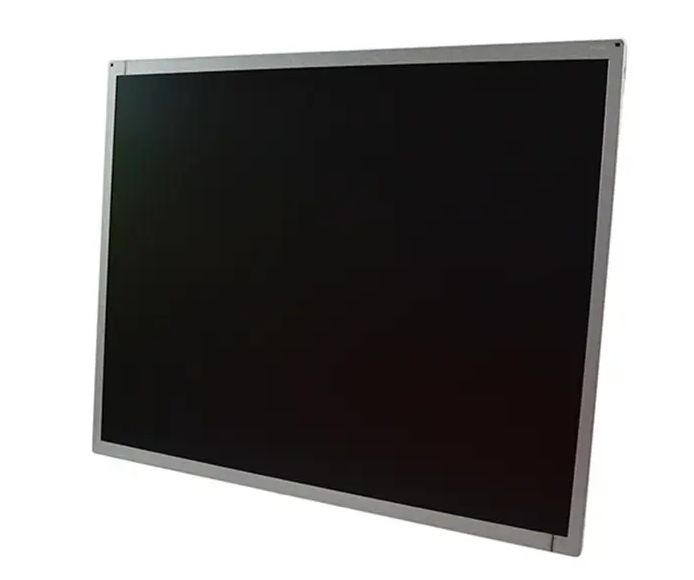

The AUO 19 Inch LCD display (M190EN03) is a 19.0-inch active-matrix TFT-LCD panel primarily used in industrial monitors, desktop displays, and medical devices. It features an SXGA (1280 × 1024) resolution, a 5:4 aspect ratio, and built-in CCFL backlighting.
It has the following characteristics:
The AUO 19 Inch LCD display (M190EN03) can be used in Gaming/Casino Systems, Outdoor and indoor Kiosks, Entertainment, Transport and Ticketing, Hospitality, Banking, and Customized Solutions. It offers a more immersive viewing experience for users.
Display Size (inch): 19″
Panel Type: a-Si TFT-LCD, LCM
Resolution: 1280 × 1024 (SXGA)
Brightness: 250cd/m2 (Typ.)
Contrast Ratio : 1000:1 (Typ.) (TM)
Display Area: 376.32(H)×301.056(V) mm
Viewing Angle: 85°/85°/85°/85° (Typ.)(CR≥10)
Backlight Lifetime (Typ.): ≥50,000 Hours
Support Colors: 16.7M
Touch Response Time: 8ms
Frequency: 60Hz
Panel Type: 19″ a-Si TFT-LCD
Interface: LVDS (2ch, 8-bit), 30 pins Connector
Surface Hardness: 3H
Power Type: External brick
Input voltage: 5.0V (Typ.)
Power Consumption: 28W (Typ.)
Out package Dimensions: 396 x 324 x 18 mm
Weight : 2.5 Kgs (Typ./Max.)
LVDS Cable Included
We promise free after-sales maintenance services within one year due to product quality problems and can be extended to 3 years based on customer needs.
In addition to the regular size of the AUO 19 Inch LCD display (M190EN03), we can also customize different specifications based on customers’ needs. The custom options include: structure, shape, size, function, interface, etc.
