Features:

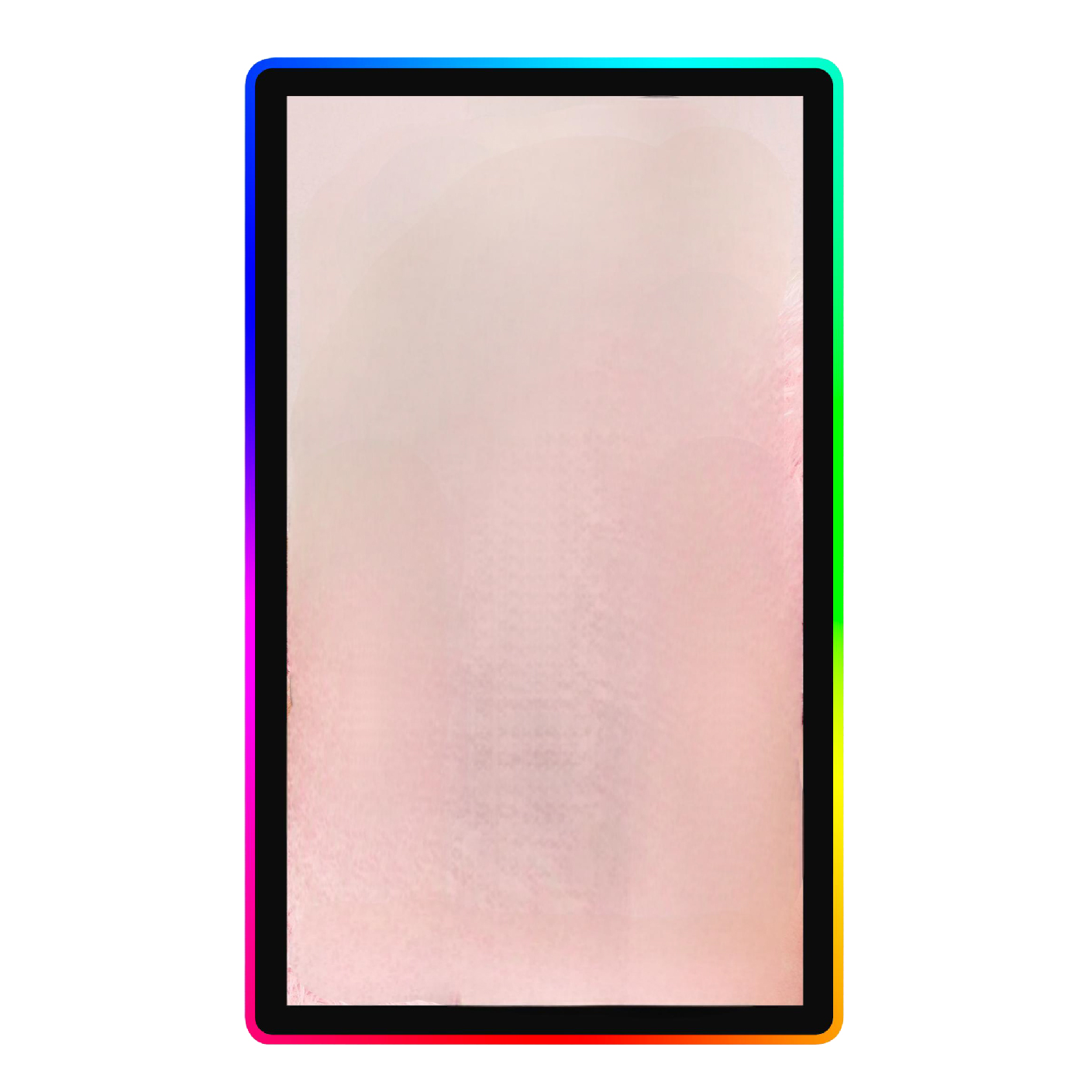

The 55 Inch LCD Open Frame Touch Monitor (with External Acrylic Led Bar) has 4K resolution—perfect for casino gaming machines. It will capture casino customers’ attention & enhances player engagement! The monitor integrates with Top One Tech’s PCAP. It has the following characteristics:
The 55 Inch LCD Open Frame Touch Monitor (with External Acrylic Led Bar) can be used in Gaming/Casino Systems, Outdoor and indoor Kiosks, Entertainment, Transport and Ticketing, Hospitality, Banking, and Customized Solutions. It offers a more immersive viewing experience for users. It can be a replacement touch monitor for gaming machines from well-known brands like Ainsworth, Amatic, Aristocrat, Aruze gaming, CT gaming, Electrocoin, Inspired, Interblock, Light&Wonder, NOVOMATIC, MERKUR GAMING, Zitro, SPINTEC, EGT, IGT, Alfastreet Gaming, etc.
Screen Diagonal (inch): 55
Display Type: 55”Capacitive touch screen
Suggested Resolution: 1920*1080@60Hz\3840×2160@60Hz(optional)
Pure LCD Panel Brightness: 350cd/m2
With Touch Monitor Brightness: 300cd/m2
Contrast Ratio (Typ.): 3000:1
Active Area/View Area: 1210.2(H) x 681(V)
Horizontal (left/right) Viewing Angle: 89°/89°(Typ.)/75°/75°(Min.)
Vertical (up/down) Viewing Angle: 89°/89°(Typ.)/75°/75°(Min.)
Backlight Lifetime (Typ.): ≥30,000 Hours
Support Colors: 16.7M
Touch Response Time: ≤11ms
Video Input: VGA, DVI, HDMI, DP (Optional）
Frequency(H/V): 30～80KHz / 60～75Hz
Mount Interface: VESA 200*200 mm 320*320 mm
Mount Type: Mount bracket, horizontal or vertical
Touch Screen Type: 55” Capacitive touch screen
Touch Panel Drivers works under below systems: XP,WIN7,WIN8,WIN10,Linux,Android
Touch System Interface: USB (can be customized rs232)
Touch Connector: VGA, DVI, HDMI, DP (Optional）
Surface Hardness: 7H
Buttons: AUTO,RIGHT,LEFT,MENU,POWER
Function: Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Power Type: External brick
Display input voltage: DC 12V ± 5%
Adapter input voltage: 100-240 VAC, 50-60 Hz
Power Consumption: 65W Max.
Standby Power Consumption: 1.60W
Out package Dimensions: 1269.5*52.7*745.6mm
Weight (including package): 30 Kg(1pcs in one package)
Power Cable: (A North American power cable or a European power cable is included according to the user’s location.)
Power Supply Brick: A power supply brick is included.
Touch/Video/DVI Cables: Detachable serial or USB touch cable, video cable and DVI cable are included
L-brackets：Four standard L-brackets are included (optional by different size)
We promise free after-sales maintenance services within one year due to product quality problems and can be extended to 3 years based on customer needs.
In addition to the regular size of the 55 Inch LCD Open Frame Touch Monitor (with External Acrylic Led Bar), we can also customize different specifications based on customers’ needs. The custom options include: structure, shape, size, function, interface, etc.
