Features:

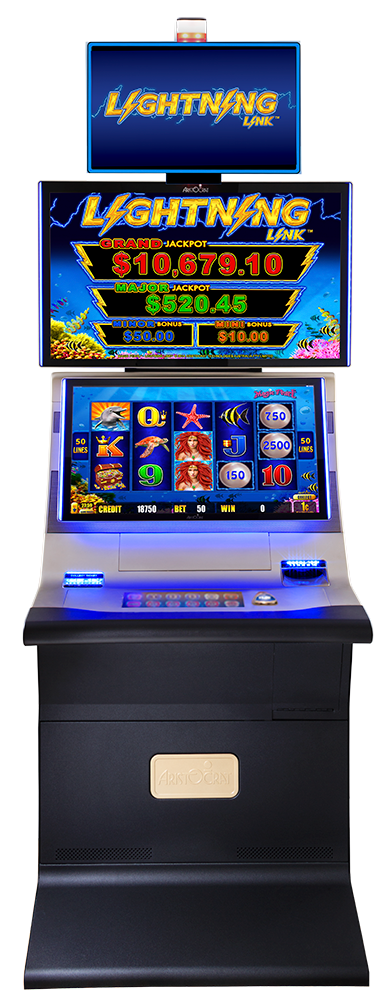

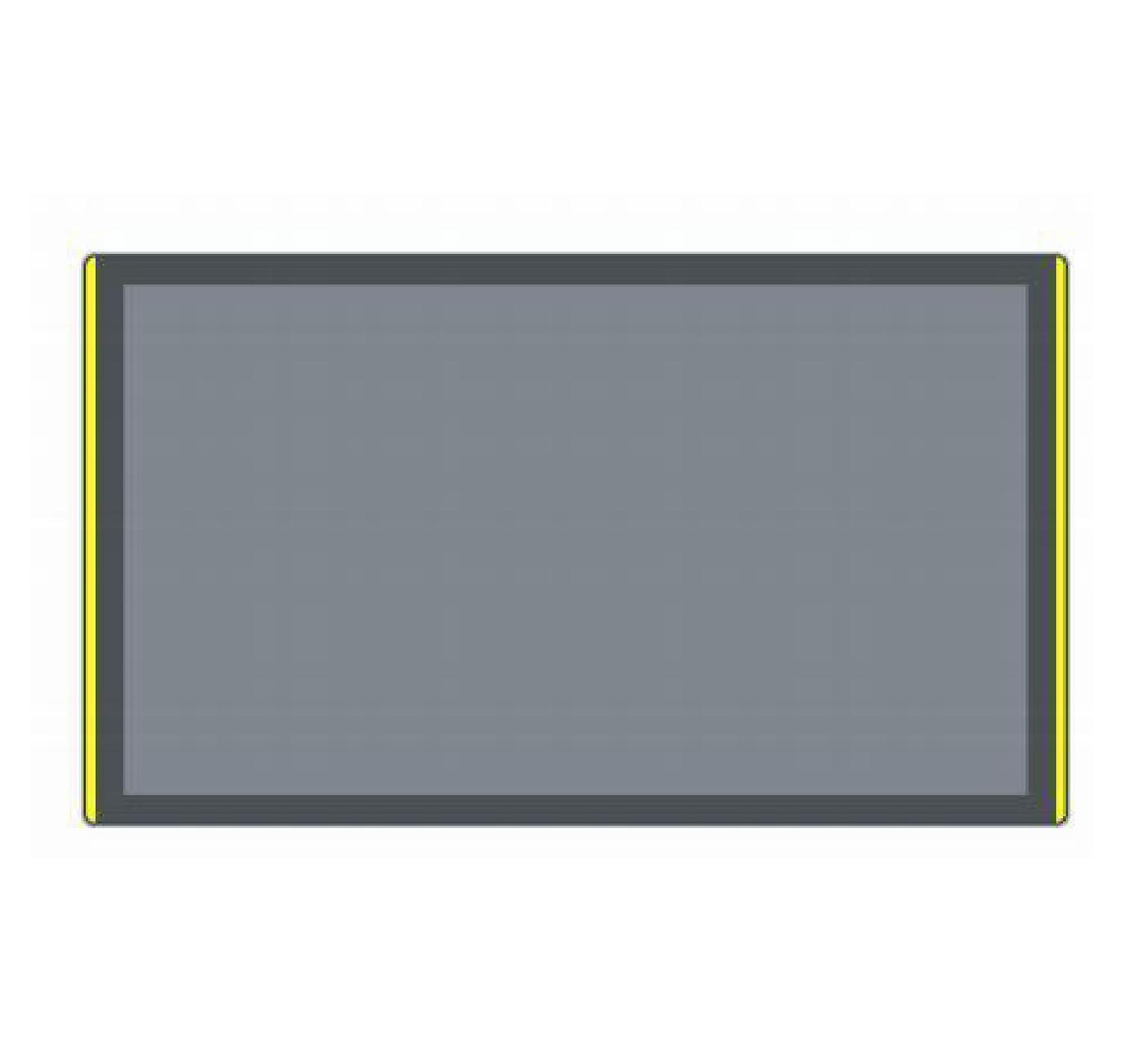

The 27 Inch LCD Open Frame Touch Monitor can be a replacement touch display for Aristocrat Helix Plus Gen8. The touch monitor has a long product lifecycle. It integrates Top One Tech’s PCAP technology. Users can control the host computer by solely touching the icons or text on the computer display screen with their fingers, getting rid of keyboard and mouse operation. It has the following characteristics:
*Fully Supports Aristocrat Helix Plus Gen8
*1920×1080 Resolution 16.7M Colors LCD Panel With LED Backlight
*Display Port+DVI+VGA Input Video Source
*DC-12V Input Voltage
*P-CAP 10Points Touchscreen With USB and RS232 Interface
*Certification CE,FCC,ROHS,etc.
The 27 Inch LCD Open Frame Touch Monitor can be a cost-effectively replacement for Aristocrat Helix Plus Gen8 gaming machines.
Screen Diagonal (inch): 27
Display Type: 16:9 Ratio 27″TFT-LCD,LED backlight
Suggested Resolution: 1920×1080@60Hz
Pure LCD Panel Brightness: 300cd/m2
With Touch Monitor: 255cd/m2
Contrast Ratio: 3000:1
Active Area/View Area: 599.3×337.7(mm)
Horizontal (left/right) Viewing Angle: 89°/89°(Typ.)/75°/75°(Min.)
Vertical (up/down) Viewing Angle: 89°/89°(Typ.)/75°/75°(Min.)
Backlight Lifetime (Typ.): ≥50,000 Hours
Support Colors: 16.7M
Touch Response Time: 12ms
Video Input: VGA/DVI/DP
Frequency(H/V): 30～80KHz / 60～75Hz
Mount Interface: L-brackets
Mount Type: Four standard L-brackets are included(optional by different size).
Touch Screen Type: 27”Capacitive touch screen
Touch Panel Drivers works under below systems: XP,WIN7,WIN8,WIN10,Linux,Android
Touch System Interface: USB interface
Touch Connector: USB
Surface Hardness: 6H
Buttons: AUTO,RIGHT,LEFT,MENU,POWER
Function: Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Power Type: External brick
Display input voltage: DC 12V ± 5%
Adapter input voltage: 100-240 VAC, 50-60 Hz
Power Consumption: 45W Max.
Out package Dimensions: 805*233*553(mm)(2pcs in one package)
Weight (N.W/G.W): 9.5Kg /23.5Kg(2pcs in one package)
Power Cable: A North American power cable or an European power cable is included according to the end user’s area.
Power Supply Brick : A power supply brick is included.
Touch/Video/DVI Cables: Detachable serial or USB touch cable, video cable and DVI cable are included
L-brackets: Four standard L-brackets are included (optional by different size).
We promise free after-sales maintenance services within one year due to product quality problems and can be extended to 3 years based on customer needs.
In addition to the regular module of the 27 Inch LCD Open Frame Touch Monitor, we can also customize different specifications based on customers’ needs. The custom options include: structure, shape, size, function, interface, etc.
